Azure Active Directory SharePoint User Profile

🍓

Introduction

In SharePoint Online only syncs a predefined set of properties from an Azure Active Directory User object to the SharePoint UserProfile and as mentioned in the FAQ section no additional properties can be added.

But it is still possible to add new User Profile Properties in SharePoint Online.

The newly created property becomes a Crawled Property and can be mapped to a Managed Property and surfaced in the SharePoint Online Search Schema.

Using a timer-triggered Azure Function it is possible to synchronize Azure Active Directory properties of a user object (or anything else) with the SharePoint Online User Profile.

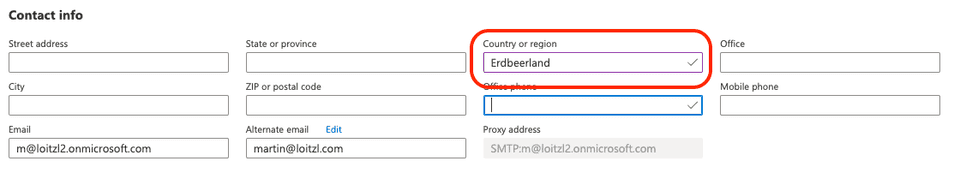

This example shows how to get the ‘Country or Region’ property of the AAD User object synced with a SharePoint User Profile custom property and a Managed Property in SharePoint Online Search.

Creating the User Profile Property

• Navigate to SharePoint Admin Center -> More Features -> User Profiles

  https://<tenant>-admin.sharepoint.com/
    _layouts/15/TenantProfileAdmin/
         ManageUserProfileServiceApplication.aspx

• Click “Manage User Properties”

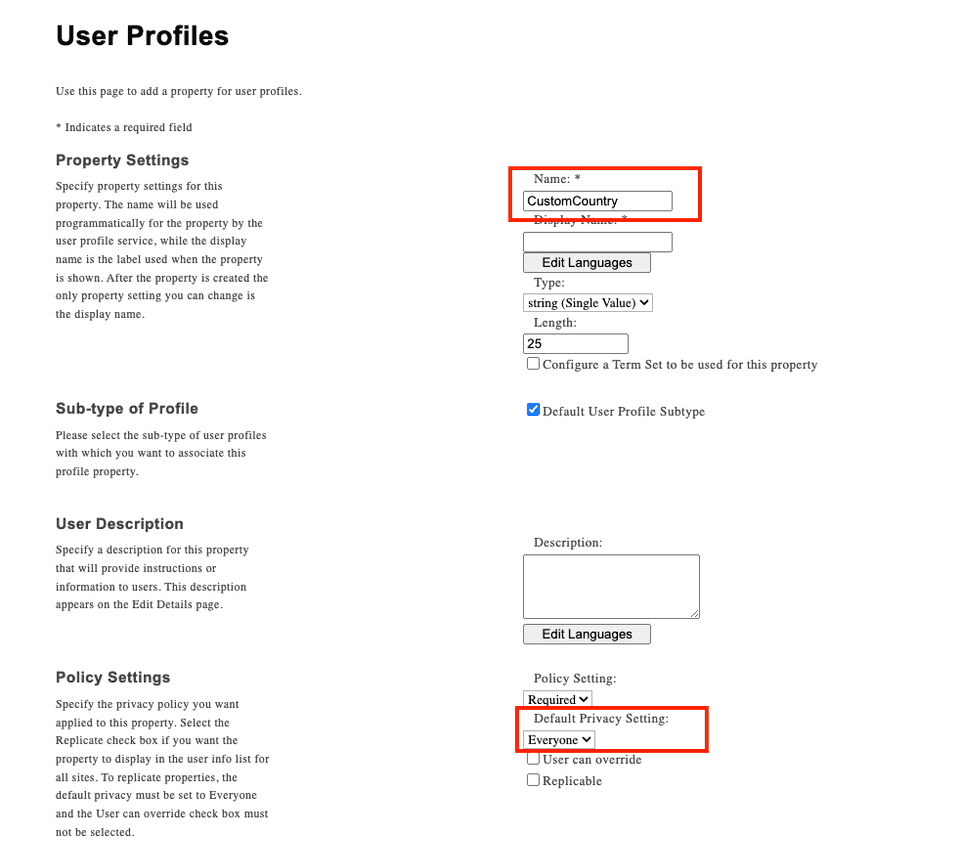

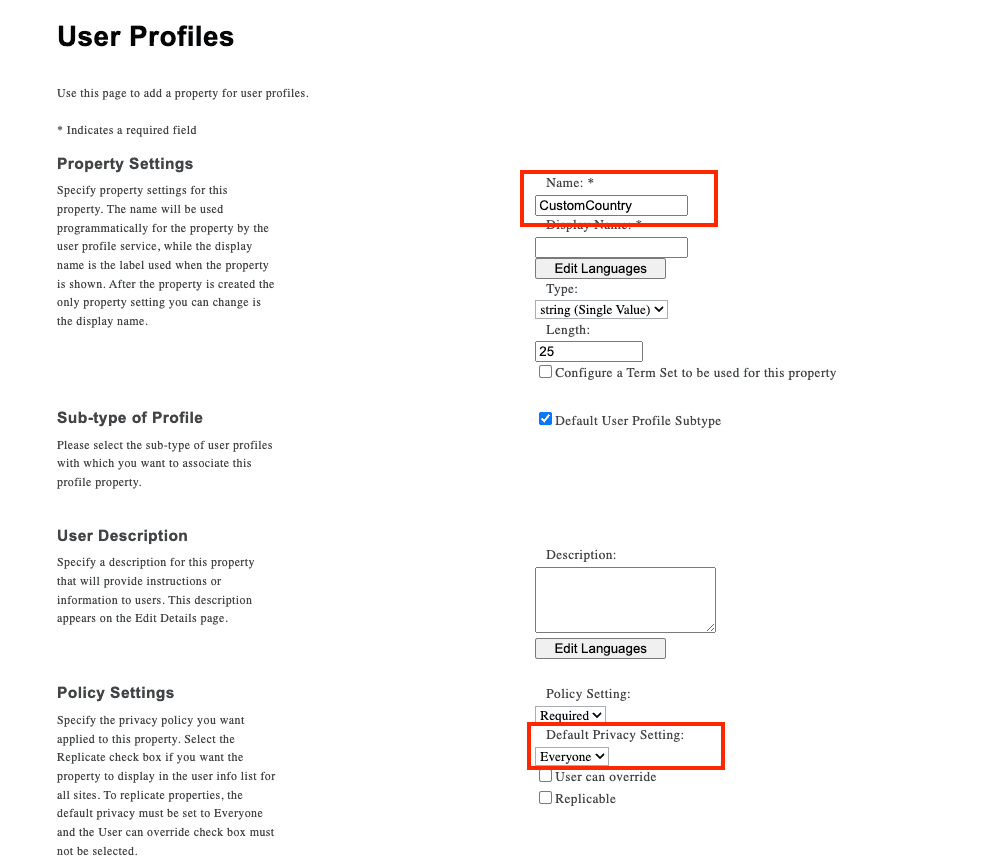

• Add a “New Property”
• Give it a name
• Be sure that the “Default Privacy Setting” is set to “Everyone”

• Be sure that in “Search Settings” the checkbox “Indexed” is set

Creating the Search Managed Property

• Navigate to SharePoint Admin Center -> More Features -> Search
• Click “Manage Search Schema”
• Select “Managed Properties”

https://<tenant>-admin.sharepoint.com/
       _layouts/15/searchadmin/
           ta_listmanagedproperties.aspx?level=tenant

• Look for an existing “RefineableStringXYZ” (I used “RefinableString120” in this example)

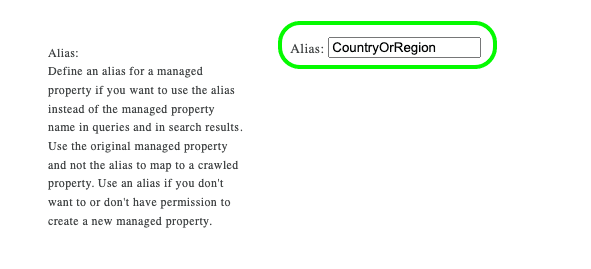

• Add an Alias, e.g., CountryOrRegion

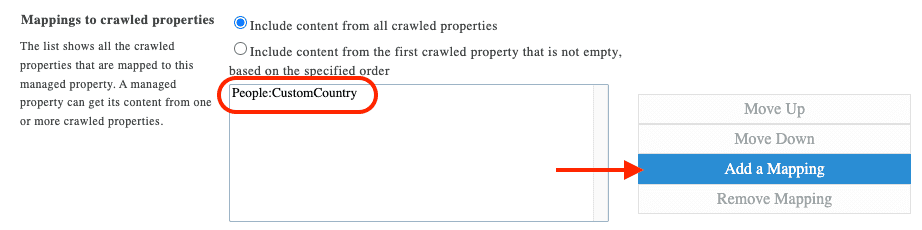

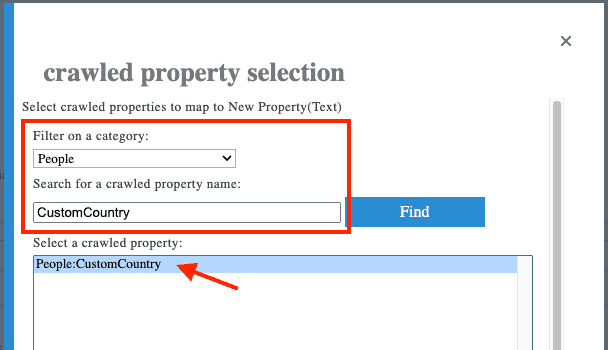

• Click “Add a Mapping” to map the Crawled Property “People:CustomCountry” on the “Managed Property”

Note: It may take several hours for the Crawled Property “People:CustomCountry” to show up.

Setup Authentication for the Azure Function

This topic is addressed in another article Creating SharePoint Terms using the App Context with the new PnP Core SDK.

A PowerShell Script can be found in the Github Repository.

The Azure Function

The Azure Function implementation that synchronizes the “Country or Region” property can be found in this GitHub Repository

Utility.ResolvePrincipal can be used to receive the login of the user

var resolvedPrincipal =
  Utility.ResolvePrincipal(
      clientContext,
      clientContext.Web,
      user.Mail,
      PrincipalType.User,
      PrincipalSource.All,
      null,
      true); // true - as input is only the email

await clientContext.ExecuteQueryRetryAsync();
PrincipalInfo principal = resolvedPrincipal.Value;

string loginName = principal.LoginName;

With the loginName we can then update the CustomCountry property.

  var peopleManager = new PeopleManager(clientContext);
  peopleManager.SetSingleValueProfileProperty(
      loginName,
      "CustomCountry",  // The custom UserProfile property
      user.Country);
  clientContext.Load(peopleManager);
  await clientContext.ExecuteQueryRetryAsync();

The Problem

PeopleManager can be used to manage SharePoint Online UserProfile Properties.

The Azure AD app registration that is used for accessing the graph cannot be used to access the SharePoint User Profile.

Since we are authenticating the Azure Function using the PnP Core SDK we can use PnP.Framework.AuthenticationManager.GetACSAppOnlyContext to get a ClientContext.

  public ClientContext GetACSAppOnlyContext(
    string siteUrl, string appId, string appSecret)

The appId and appSecret required for this call are from a SharePoint Add-In Registration.

So, a “proxy” SharePoint Add-In is required for that:

Let’s first create a new Add-In using AppRegNew.aspx:

    https://<tenant>.sharepoint.com
          /_layouts/15/appregnew.aspx

• Generate Client Id - note the id for later use
• Generate Client Secret - note the secret for later use
• Title: ‘Graph SyncJob Delegate App’
• App Domain: “www.localhost.com”
• Redirect URL: ”https://www.localhost.com”

Then the permissions need to be assigned using:

  https://<tenant>-admin.sharepoint.com
           /_layouts/15/appinv.aspx

• Enter the App Id from the previous step and click on ‘Lookup’.
• In the Add-Ins’s permissions request, enter the followings:

<AppPermissionRequests AllowAppOnlyPolicy="true">
    <AppPermissionRequest Scope="http://sharepoint/social/tenant" Right="FullControl" />
</AppPermissionRequests>

• Click on “Create”
• Click on “Trust”

This will request App Only Permissions for writing to the SharePoint User Profile.

Enabling App Only Authentication

App-Only authentication is deactivated by default, but it can be enabled with this PnP PowerShell command:

    Connect-PnPOnline -Url https://<tenant>-admin.sharepoint.com -DeviceLogin
    Set-PnPTenant -DisableCustomAppAuthentication $false

Results

After the job ran successfully the UserProfile contains a value from the Azure AD field “Country or Region” on the SharePoint UserProfile…

SharePoint User Profile

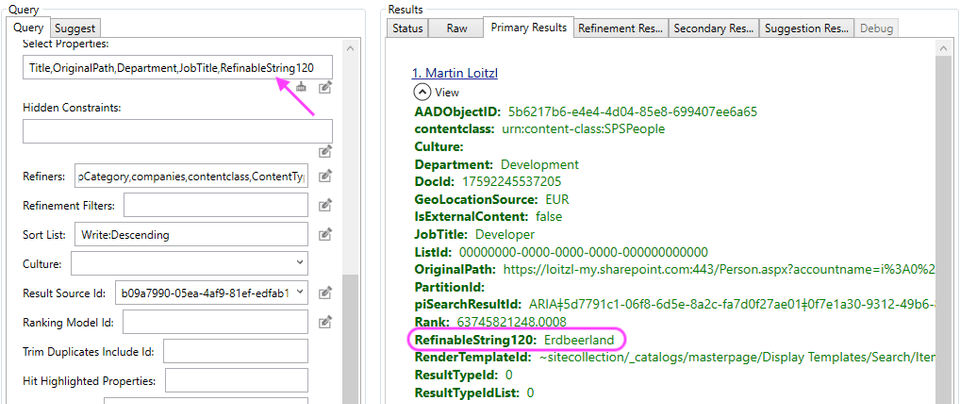

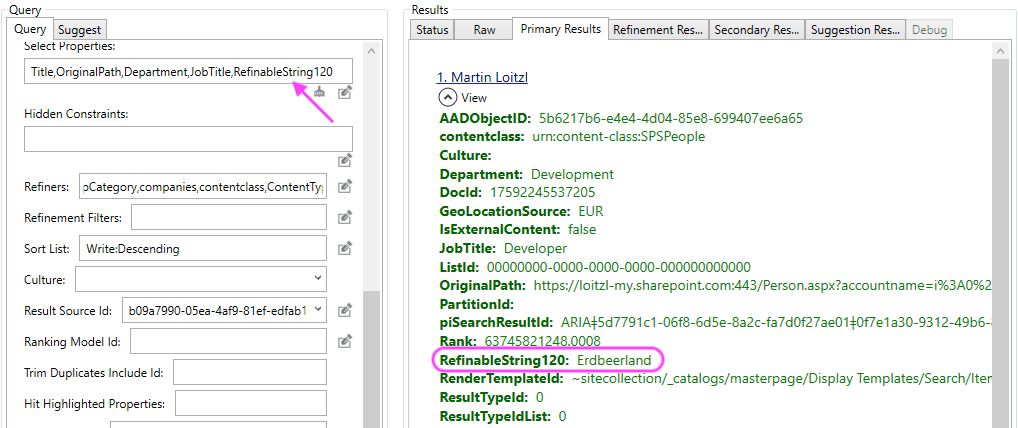

… and in Search, we have the RefinableString120 property with the same value.

(Submit-PnPSearchQuery `
  -SourceId b09a7990-05ea-4af9-81ef-edfab16c4e31       # User Profiles              `
  -Query "DocId:17592245537205"                        # My Account in this Tenant  `
  -SelectProperties RefinableString120,CountryOrRegion # mapped to CustomCountry    `
).ResultRows

Key                      Value
---                      -----
RefinableString120       Erdbeerland
CountryOrRegion          Erdbeerland
DocId                    17592245537205
GeoLocationSource        EUR
contentclass             urn:content-class:SPSPeople
AccountName              i:0#.f|membership|martin@loitzl.onmicrosoft.com
Department               Development
JobTitle                 Developer
LastModifiedTime         03/17/2022 09:54:21
Path                     https://loitzl-my.sharepoint.com/Person.aspx?accountname=i:0%23.f|membership|martin@loitzl.onmicrosoft.com
PictureURL               https://loitzl-my.sharepoint.com/User Photos/Profile Pictures/martin_loitzl_onmicrosoft_com_MThumb.jpg
PreferredName            Martin Loitzl
SipAddress               martin@loitzl.onmicrosoft.com
WorkEmail                martin@loitzl.com
Title                    Martin Loitzl

Final Notes

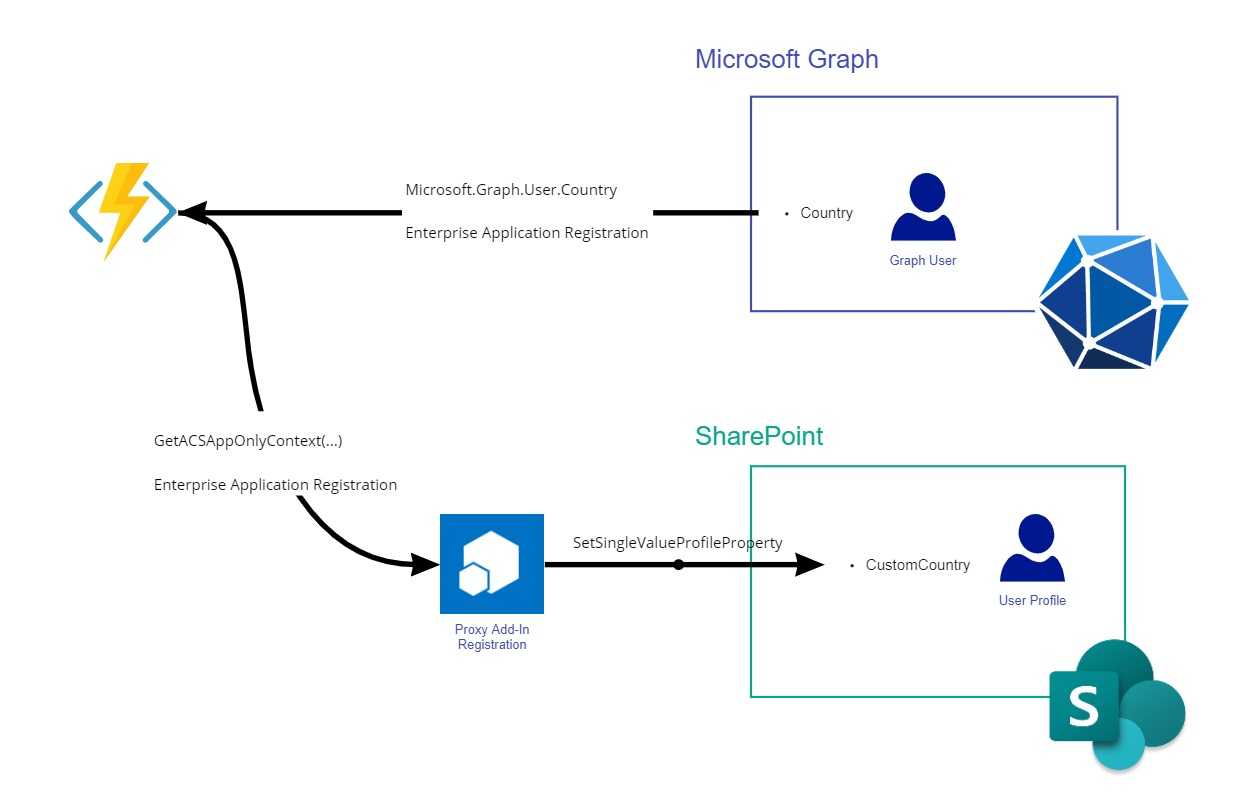

• The function uses PnP.Core Authentication to connect to MS Graph and a SharePoint “Proxy” Add-In with AppOnly Permissions to write to the SharePoint User Profile Service:

• And Kudos to Darius for figuring that out in one of our customer projects 👍🦄
